Introducing the BK 7000
For reworking system for game consoles, motherboards etc.
* Built-in adjustable stand / holder for hot air / IR gun *
The BlackJack BK7000 pre-heating system
uses a high powered Quartz infra-red heating technology for fast heat up.

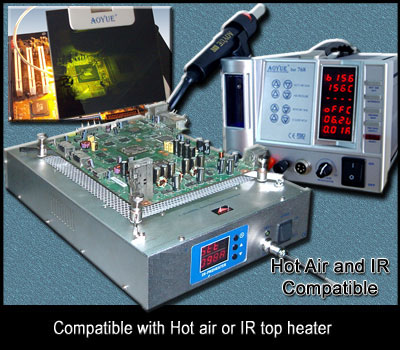

The unit also includes an adjustable hot air gun mount which is
compatible with all of the BlackJack & Circuit Specialists brands of
hot air systems as well as many other industry standard hot air
systems.
A versatile board holder and temperature
probes make the BK 7000 ideal for reworking double-sided diverse
technology printed circuit boards that were fabricated with traditional
or lead free solder.
This system has three types of preheating operations.
- Type 0 for regular pre-heating or baking.
- Type 1 for more precise temperature control using the external probes
- Type 2 for a fully automated time and temperature based profile mode
FUNCTIONS and FEATURES:
-

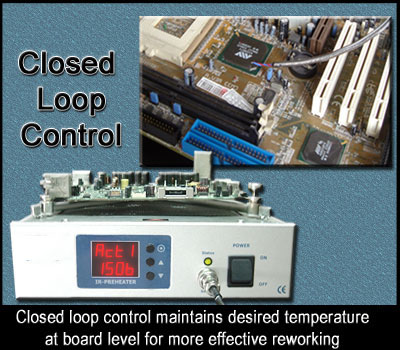

Microprocessor controlled closed
loop system design. Sensors may be attached to user selected locations
on the board for more accurate temperature feedback
-

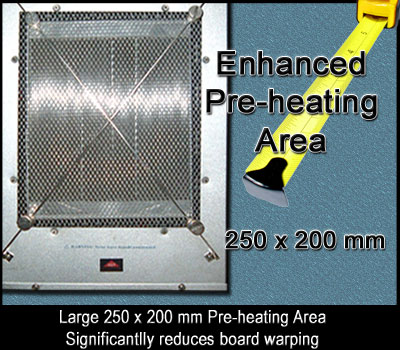

250mm x 200mm ( approx 10” x 8”)
pre-heating area utilizing Quartz IR heating technology. Minimizes
warping on larger sized boards
-

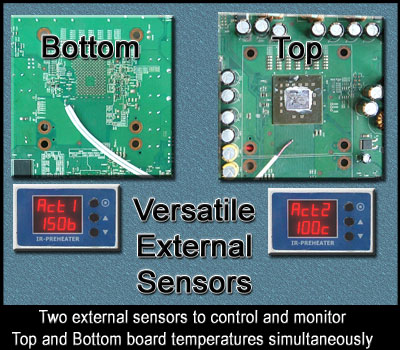

Two flexible external temperature
probes for precise control and monitoring of actual board temperatures.
The sensor design enables the user to monitor both the top and bottom
board temperatures while adjusting the internal heater temperatures.
-
CPU controlled Profile adjustment
functionality for automated reworking tasks under user defined time
& temperature settings.Uses advanced digital controls and signal
processing for better performance, accuracy and safety.
-

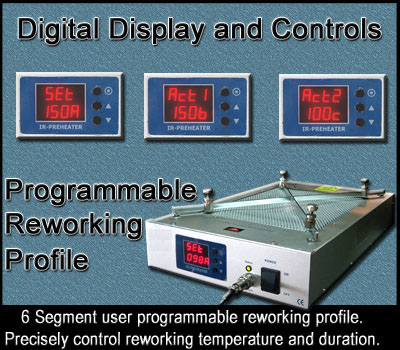

Programmable 6 segment reworking profile. Set and store the desired duration and temperature for repetitive reworking tasks
-
Software pre-set temperature limits and shut-down feature to protect against overheating and operator errors
-
ESD safe. Compatible with traditional solder and lead free solder
-

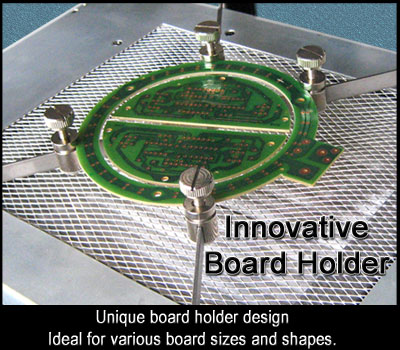

Innovative board holder. Specially designed to fit various board sizes and shapes
SPECIFICATIONS:
- Power input: 220VAC

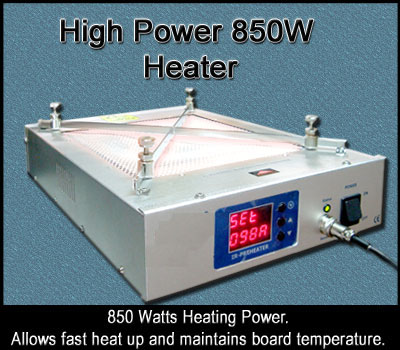

- Power: 850 W (maximum)
- Dimensions: 345mm (L) x 285mm (W) X 114mm (H)
- Temp Range: 50 degC – 400 degC
- Heating Element: IR Heating
- Preheating Area: 250mm x 200mm ( approx 10” x 8”)
- Note: Hot Air gun shown but not included.
