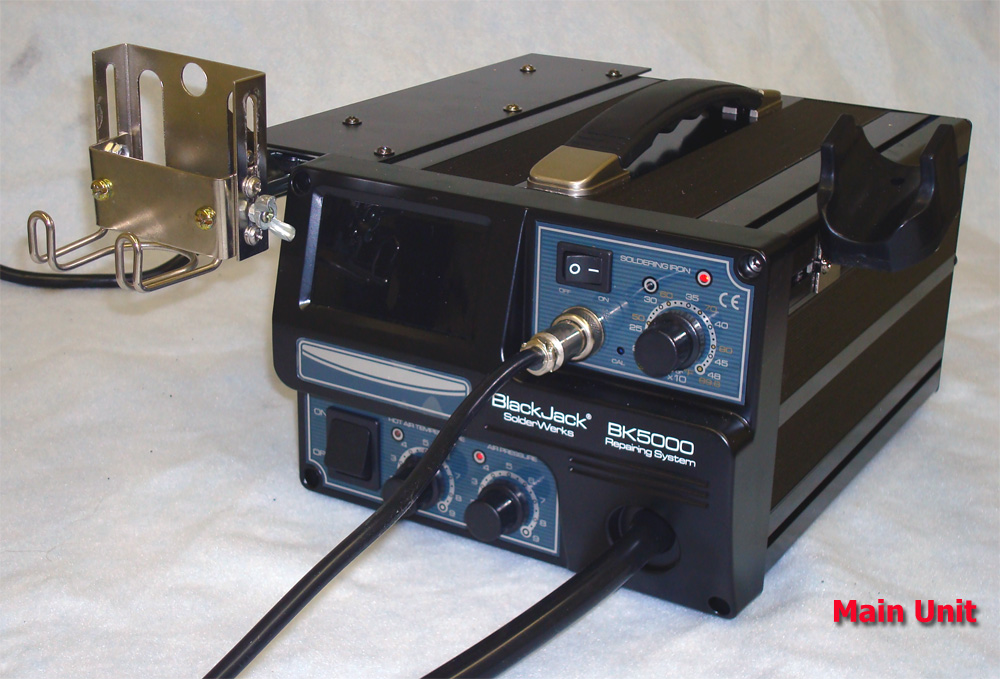

BlackJack SolderWerks BK 5000
Multi-function soldering and hot air solution in a space-saving design.
The handy mechanical arm provides for more efficient use of the hot air gun.
The
BK5000 from BlackJack SolderWerks provides a very convenient
combination of hot air and soldering in one compact package. The hot
air gun is equipped with a hot air protection system which provides
1) system cool-down
2) overheat protection
The system cool-down feature
removes the residual heat from the nozzle after the hot air function is
switched off. This will cool the nozzle more rapidly & extend the
life of the heating element. The overheat protect feature
effectively shuts off power to the heater when an overheat in the
middle of the handle has been detected. The hot air gun is designed to
use different SMD nozzles for various SMD applications. The soldering
iron incorporates a replaceable tip design & uses the same series
of tips that are compatible with BlackJack models BK2000 & BK2000+
NB.: Please
note that this unit features analogue controls with indication LEDs - it
does not have a digital readout.
MECHANICAL ARM
The
BK5000 system ships with a very handy mechanical arm which allows the
user to manipulate the circuit board using both hands with the hot air
gun mounted in the mechanical arm. Installation of the mechanical arm
is simple. The BK5000 functions with or without using the mechanical
arm feature.
- Ideal for use in a variety of
soldering applications such as use by hobbyists, repair of electric
appliances, mobile phone repairs, laptop repairs and many more.
- Simple and easy to use procedure requires no special skills.
- ESD design with grounding measures.
SPECIFICATIONS:
|
Power Input :
|
220V
|
|
Dimensions:
|
188mm (w) x 126mm (h) x250mm (d)
|
|
Weight:
|
4.8Kg
|
|
SOLDERING IRON
|
|
Power Consumption:
|
35W
|
|
Temperature Range:
|
200 - 480 degrees Celsius
|
|
Heating Element with Tip:
|
Ceramic Heater
|
|
Output Voltage:
|
24V
|
|
Tip to Ground Resistance:
|
Below 2 ohms
|
|
Tip to Ground Potential:
|
Below 2mV
|
|
HOT AIR
|
|
Power Consumption:
|
500W peak
|
|
Temperature Range:
|
100 - 500 degrees Celsius
|
|
Heating Element
|
Metal Heating Core
|
|
Nozzle to Ground Resistance:
|
Below 2 ohms
|
|
Pump/Motor Type:
|
Diaphragm Pump
|
|
Air Capacity:
|
23 L /min (max) |
