BlackJack SolderWerks BK 4000
Professional results at an affordable price!
The powerful output provides easy desoldering of multi-layer boards

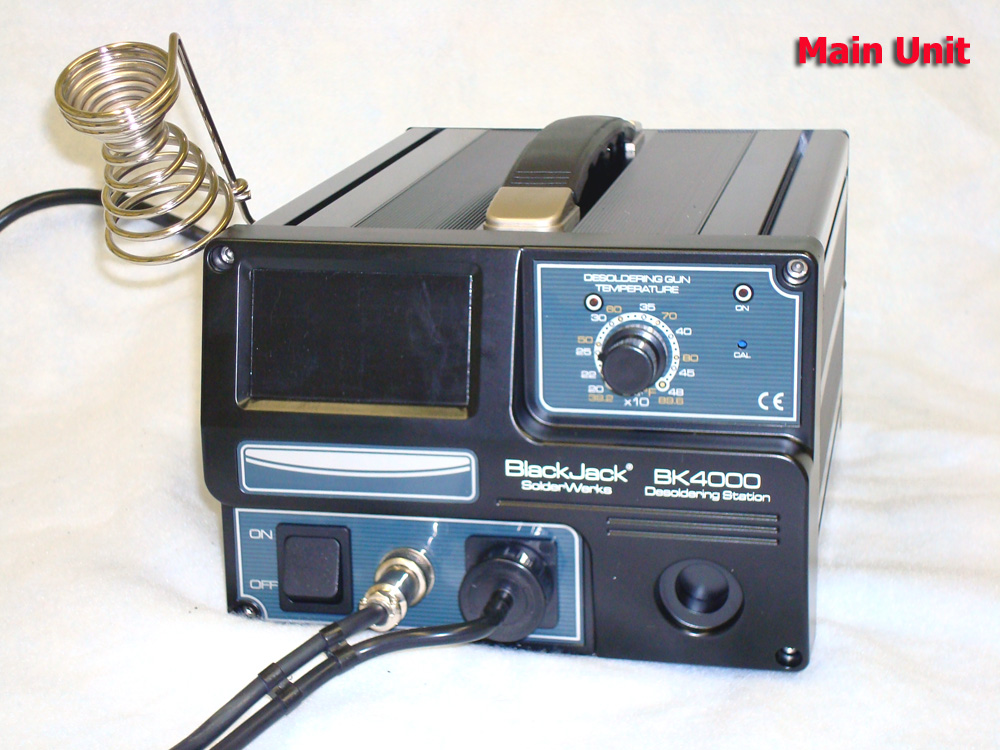

The BlackJack
SolderWerks BK4000 is a thermostatically controlled desoldering station
that provides low cost and solid performance to fit the needs of the
hobbyist and light duty user.
The powerful 70W heat delivery system
allows you to desolder at lower temperatures, which means less time on
the board and less potential for component or board damage. The double
cylinder vacuum pump quickly moves the solder away from the work area
to ensure a professional job every time.
The temperature control knob is simple to operate & is calibrated in F
deg and C deg (uses x 10 scale). The temperature range can be set
from 200 deg to 480 deg Celsius (392-896 deg F).
The BK4000 is
calibrated at the factory, but a front panel temperature calibration
port is also provided if the user desires to maintain or check the
system temperature accuracy.

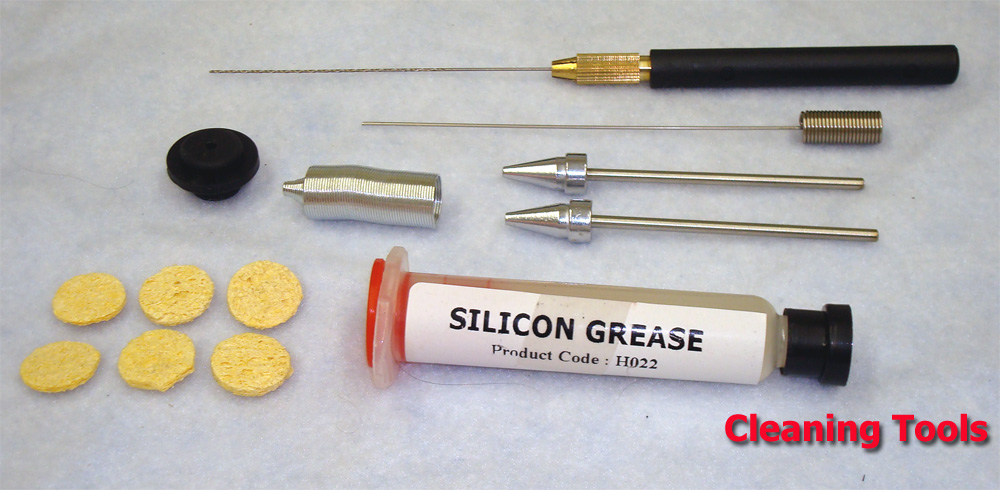

The station comes complete with a
lightweight desoldering gun, (6) paper filters, (1) spring filter and
grommet, cleaning pin and drill for nozzle, silicone grease to prevent
air leakage, and (2) spare tips.
Includes 3 desoldering nozzles in total: 1.0mm, 1.5mm & 1.8mm diameter
This unit is compatible with the new desoldering tips with shafts, item nos.:
302082-1.0
302092-1.5
301212-1.8
- Compact unit with air cylinder type strong suction vacuum pump.
- Suited for multi-layered PCB reworking.
SPECIFICATIONS:
|
Power Input :
|
220 VAC
|
|
Power Consumption:
|
70W
|
|
TemperatureRange:
|
200 - 480 degrees Celsius
|
|
Heating Element:
|
PTC Heating Element
|
|
Output Voltage:
|
24V
|
|
Tip to Ground Resistance:
|
Below 2 ohms
|
|
Tip to Ground Potential:
|
Below 2mV
|
|
Suction Flow:
|
15L/min (max)
|
|
Vacuum Generator:
|
Double Cylinder
|
|
Vacuum Pressure:
|
600mm Hg
|
|
Station Dimensions:
|
188(w) x 127(h) x 244(d) mm
|
|
Weight:
|
5.3Kg |
