DSO 1060 Hand Held Digital Oscilloscope 60MHz

£291.66 Ex VAT
£349.99 Inc VAT

1 Units in Stock

Back In Stock!

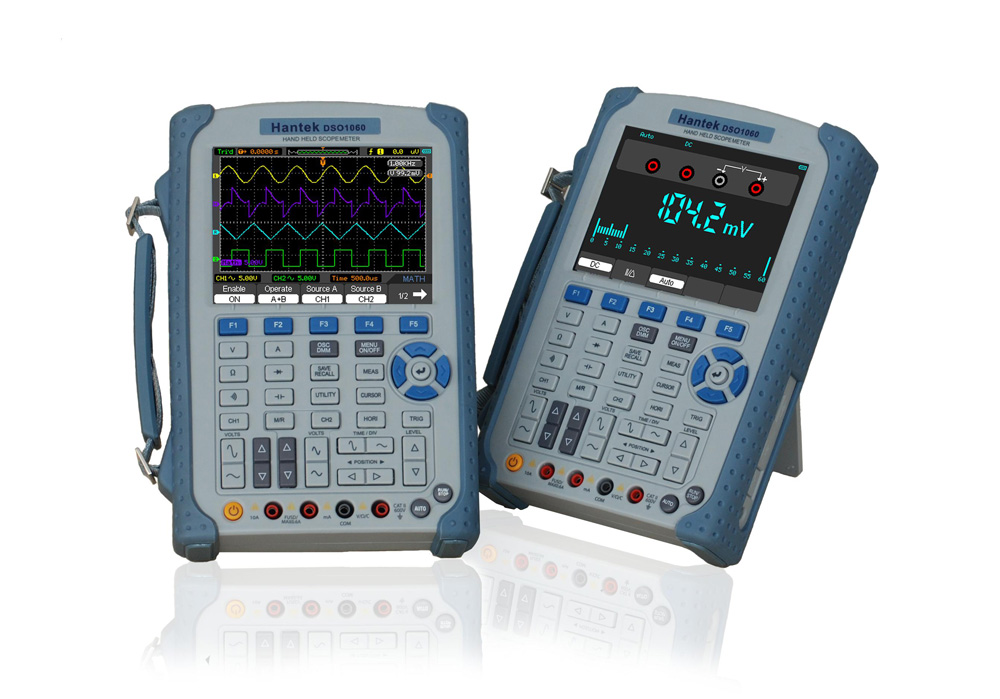

Hantek Hand-held Oscilloscope
DSO 1060

60MHz Handheld Digital Oscilloscope with integrated Digital Multimeter Support
60MHz Bandwidth with 2 Channels
150MSa/s Real-Time Sampling Rate
50Gsa/s Equivalent-Time Sampling Rate
6,000-Count DMM resolution with AC/DC at 600V/800V, 10A
Large 5.7 inch TFT Color LCD Display
USB Host/Device 2.0 full-speed interface connectivity
Multi Language Support
Battery Power Operation (Installed)

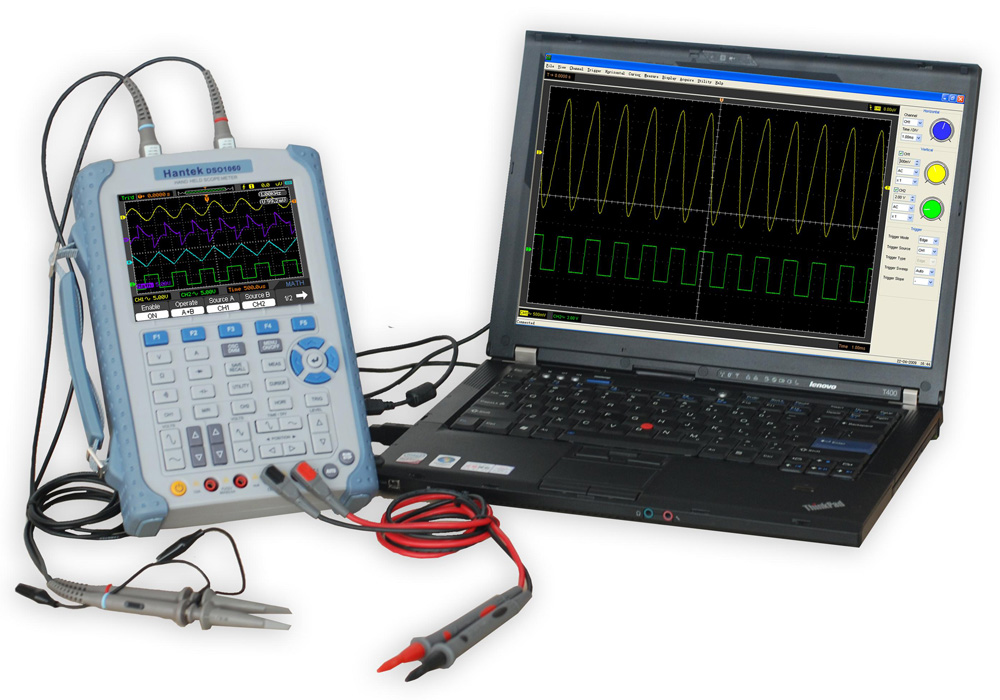

Can be used connected to a computer as a virtual oscilloscope.

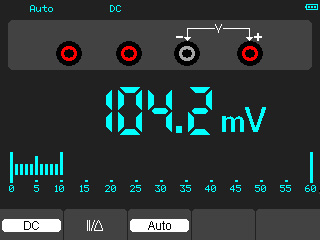

6000 Count Digital Multimeter

22 kinds of waveform measurements

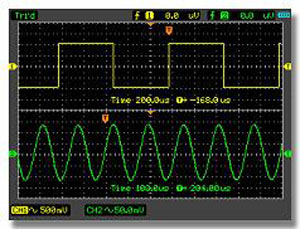

dual time base ALT trigger mode for easy observation of two signals of different frequency

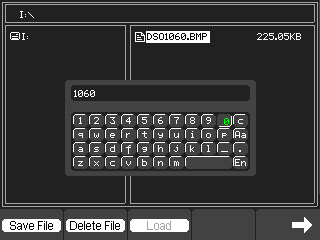

Convenient file storage and management

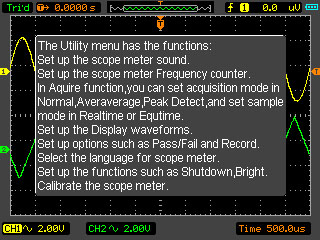

Built-in help system

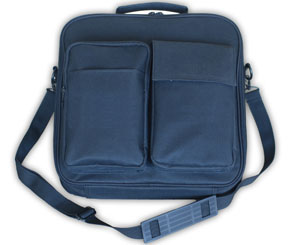

Includes protective carry case

*MODE*		*DSO1060*
VERTICAL	Channels	2
	Bandwidth	60MHz
	Rise Time	5.8ns
	Input Impedance	Resistance: 1M ; Capacitance: 15 pF
	Input Sensitivity	10mV/div to 5V/div
	Input Coupling	AC, DC and GND
	Vertical Resolution	8 bits
	Maximum Input	400V (DC+AC Peak)
HORIZONTAL	Real-Time Sampling Rate	150MSa/s
	Equivalent Sampling Rate	50GSa/S
	Time Base Range	5ns/div~1000s/div
	Memory Depth	32k at Single Channel, 16k at Dual Channel
	Time Base Precision	±50ppm
TRIGGER	Source	CH1, CH2
TRIGGER	Mode	Edge, Pulse Width, Alternative
X-Y MODE	X-Axis Input	Channel 1
	Y-Axis Input	Channel 2
	Phrase Shift	Max.3 degree

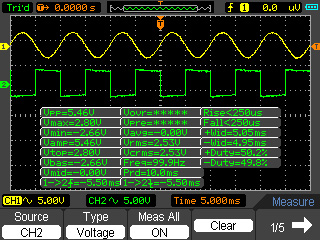

CURSORS AND MEASUREMENT	Voltage Measuremet	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
	Time Measuremet	Frequency,Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
	Delay Measuremet	Delay time from ch1 rising edge to ch2 rising edge
	Delay Measuremet	Delay time from ch1 falling edge to ch2 falling edge
	Cursors Measuremet	Manual, Track, Auto Measure Modes
Waveform Signal Process		CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert
Storage	Storage	15 Waveforms and Setups
METER MODE	Maximum Resolution	6,000 Counts
	DMM Testing Modes	Voltage, Current, Resistance, Capacitance,Diode & Continuity
	Maximum Input Voltage	AC: 600V, DC: 800V
	Maximum Input Current	AC: 10A, DC: 10A
	Input Impedance	10 MΩ
DISPLAY	TFT LCD Type	5.7 Inch with LED Backlight Display
DISPLAY	Display Resolution	240 (Vertical) x 320 (Horizontal) Dots
INTERFACE	USB	USB Host / Device 2.0 Full Speed Supported
INTERFACE	Optional	RS232, LAN
POWER SOURCE	Line Voltage Range	AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA
POWER SOURCE	Battery Power (Installed)	6 Hours (Li-ion Battery)
MECHANICS	Dimension	245 x 163 x 52 (mm)
MECHANICS	Weight	1.2Kgs
Other	GND Reference	Oscilloscope and Multimeter Independence
