26 Volt Power Supply for Schindler Lift Systems Elevators DC 26V 6.0A 150W PSU

Be the first to review this product

Qty In Stock: 1

Excl. Tax: £495.00 Incl. Tax: £594.00

Call For Pricing

Please call us on +44 (0)161 928 4129 for price and availability.

Email Us

Quick Overview

26V 6.0A 150W replacment PSU for Schindler Lift Systems. Highly reliable. UL and CE approved. RoHS compliant.

Details

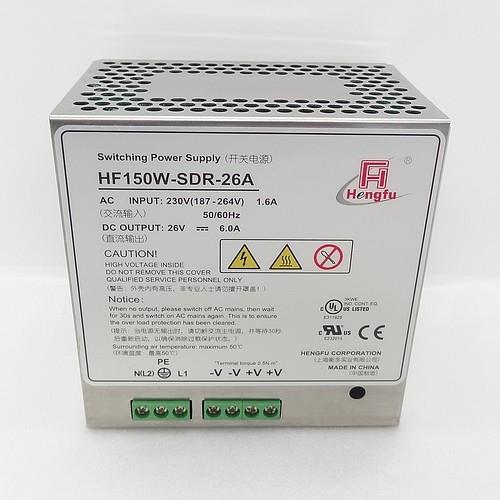

Heng Fu 150W-SDR-26A Replacement Spare Power Supply for Schindler Lift Systems.

A genuine replacement part for Schidnler elevators running on 26V / 6A supply.

Features:

Installed on DIN rail TS35/ 7.5 or 15

Approvals: UL508 listed, UL/ CUL/ CE

High reliability, compact design

Protections: overload/ over voltage/ short circuit

5 years limited warranty

lF615DRA  108.4 x 74.2 x 109(mm)


AC input voltage range

187~264VAC

Input frequency

50/60Hz

Inrush current

cold start, 40A/230V

Input leakage current

<1mA/ 230VAC

Line regulation (full load)

≤±0.5%

Output voltage adjust range

±10%

Output overload protection

110~130%, delay shutdown, re-power on to recover

Output over voltage protection

115~150%, shut off, re-power on to recover

Withstand voltage

I/P -O/P: 3.0KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

Rise time

[email protected] load (typical)

Hold up time

[email protected] load (typical)

Operating temperature

-20℃~+50℃

Safety standards

UL508, UL60950, EN60950 approved

EMC standards

meet EN55022 classB, EN61000-3-2,3,

EN61000-4-2,3,4,5,6,8,11

Cooling method

convection

Connection

3P/ 6.35mm pitch

4P/ 6.35mm pitch, screw terminal block

Weight

0.67kg/pcs

Additional Information

Brand Heng Fu
Output 26V DC
Power Input 230V
