Description

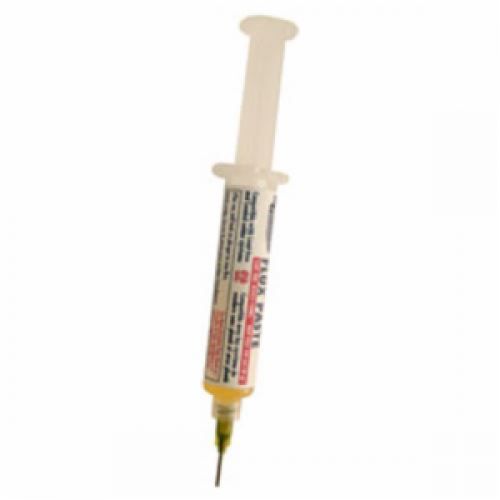

10ml Syringe No Clean Flux Paste
MG Chemicals Part No. 8341-10ML
Convenient syringe dispenser ideal for touch up and repair of surface mount assemblies.
A unique mixture of high grade synthetic resin and thixotropic agents designed specifically for use with high temperature lead free and conventional Sn/Pb alloys.
It provides the fluxing activity levels that promote fast wetting action and maximum wetting spread.
- Excellent wettability
- No clean Non-conductive,
- Non- tacky residues
- Compatible with Lead free & Leaded Solder Systems
- Thixotropic paste
- RoHS compliant
Thisa flux paste is a no clean formulation. Therefore the residues do not need to be removed for most applications.
If a Conformal Coating needs to be applied on to the board for moisture protection then removal of the residue is require. In such a case, you will require the use of a Flux Remover.
Specifications
| Specification | Test Method | |
| Flux Classification | R0L0 | JSTD-004 |
| Copper Mirror | No removal of copper film | IPC-TM-650 2.3.32 |
| Silver Chromate | Pass | IPS-TM-650 2.3.33 |
| Corrosion | Pass | IPS-TM-650 2.6.15 |
| SIR | ||
 JSTD-004 | 2.36 x 1013 ohms | IPC-TM-650 2.6.3.3 |
| Bellcore (Telecordia) | 5.24 x 1012 ohms | Bellcore GR-78-CORE 13.1.3 |
| Electromigration | Pass | Bellcore GR-78-CORE 13.1.4 |
