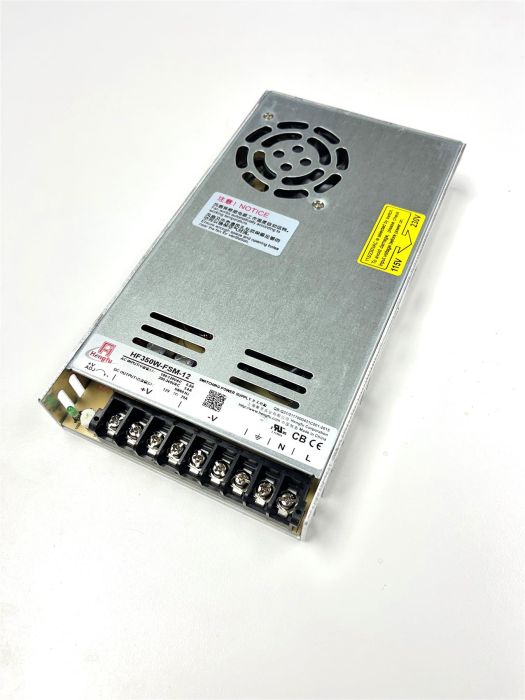

12 Volt Enclosed Switch Mode DC Power Supply PSU 24V 14.6A 350W

12V 29A 350W PSU

Highly reliable, universal AC input and full range single output power supply.
These units have the approval of UL and CE. They are 100% full load burn-in tested.

Overload, over-current and over voltage protection. Short circuit protection.
2 year manufacturer’s warranty.

Specification

• Dimensions: Super Sli  - 215 x 115 x 30mm
• Weight: 0.68kg
• Complies with RoHS Directive
• AC Input Voltage Range: 85-132/ 170-264VAC Selected by Switch
• Input Frequency: 47-63Hz
• Inrush Current: Cold Start, 60A/230V
• Input Leakage Current: <2mA/230V
• Line Regulation (Full Load): +/- 5%
• Output Voltage Adj. Range: +/- 10%
• Output Overload Protection: 105-140%  Hiccup Mode, Auto Recovery
• Output Over Voltage Protection: 115-150% Hiccup Mode, Auto Recovery
• Short Circuit Protection: Hiccup Mode, Auto Recovery
• Withstand Voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
• Rise Time: 50ms @full load (typical)
• Hold Up Time: 20ms @full load (typical)
• Operating temp.& humidity: -10degreesC to 50degreesC (14degreesF - 122degreesF), 20%-93%RH (non-condensing)
• Storage temp.& humidity: -20degreesC to 85degreesC (-4degreesF - 185degreesF), 20%-93%RH (non-condensing)
• Safety Standards: GB4943, UL62368-1, UL60950, EN60950
• EMC Standards: GB9254, EN55022 classA, EN55024, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
• Cooling Method: Fan
