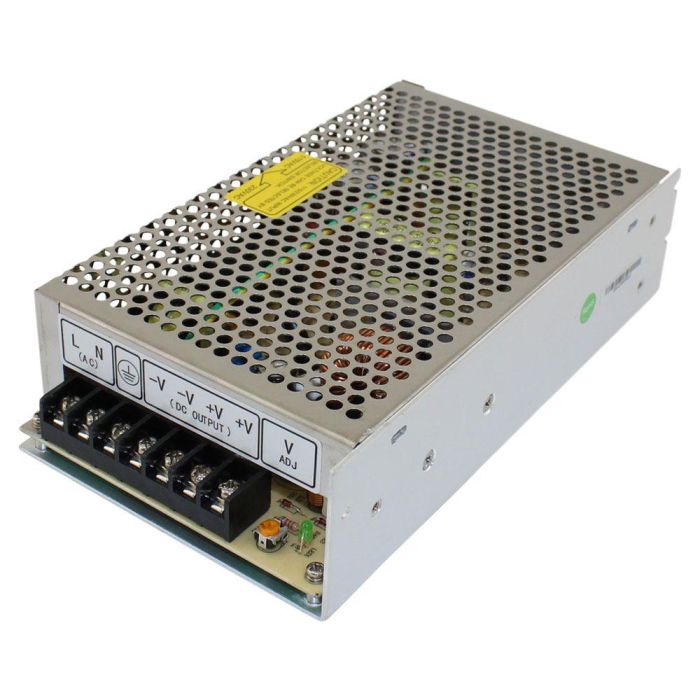

5 Volt Enclosed Switch Mode DC Power Supply 5V 30A 150W

5V 30A 150W

Highly reliable universal AC input, full range single output power supply. UL and CE approved.

100% full load burn-in tested.

Overload, over-current and over-voltage protection. Short circuit protection.

2 year manufacturer's warranty

Dimensions: 7.96 x 3.92 x 1.96"

Complies with RoHS Directive

Specification

• AC Input Voltage Range: 85-264VAC (120-370VDC) AC Input Voltage Range: 85-132/ 170-264VAC Selected by Switch
• Input Frequency: 47-63Hz
• Inrush Current: Cold Start, 20A/115V, 40A/230V
• Input Leakage Current: <0.7mA/230V
• Line Regulation (Full Load):
• Output Voltage Adj. Range: +/- 10%
• Output Overload Protection: 110-130% Constant Current, Auto Recovery
• Output Over Voltage Protection: 115-150%
• Withstand Voltage: I/P-O/P:3.0KVAC/1min; I/P-F/G:1.5KVAC/1min; O/P-F/G:0.5KVAC/1min
• Rise Time: 50ms@full load (typical)
• Hold Up Time: 20ms@full load (typical)
• Operating temp.& humidity: -10degreesC to 50degreesC (14degreesF - 122degreesF), 20%-93%RH (non-condensing)
• Storage temp.& humidity: -20degreesC to 85degreesC (-4degreesF - 185degreesF), 20%-93%RH (non-condensing)
• MTBF: 100,000 hours
• UL Ref. Number: E258719
• Safety Standards: GB4943, UL80950, EN60950
• EMC Standards: GB9254, EN55022 classB, EN55024, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
• Cooling Method: Convection
