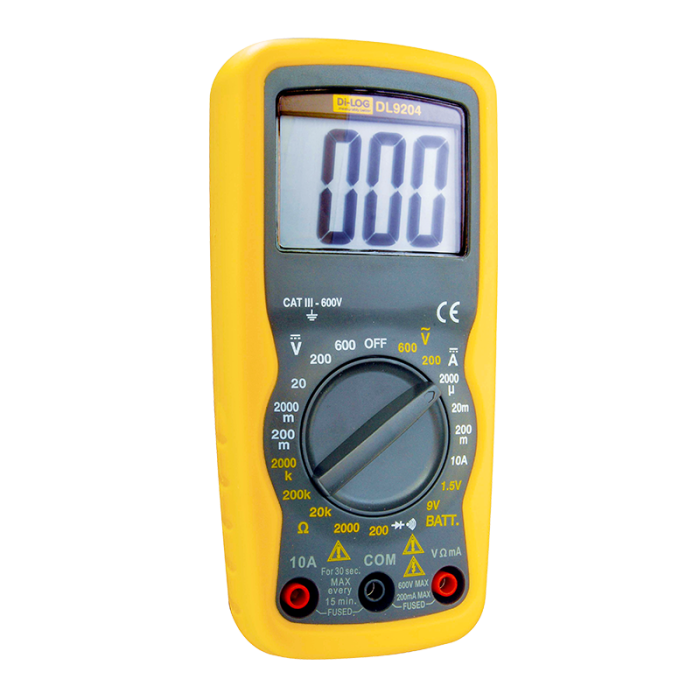

Di-Log DL9204 Compact Manual Ranging 600V Multimeter
DL9204 Compact Manual Ranging 600V Multimeter
Compact manual ranging digital multimeter with 2000 count LCD display. Full protection on all ranges, safety category to CAT 111 600 V. Functions include battery and diode test.
Features:
- Full range protection
- Auto power off
- Large 2000 count LCD display
- 1.5 & 9 V battery test
- Data hold.
Specification:
| Measurement | Range | Basic Accuracy |
| AC voltage | 1.0 mV – 600 V | +/- 1.5 % + 3 digits |
| DC voltage | 0.1 mV – 600 V | +/- 1.2 % + 2 digits |
| AC current | 1 mA – 10 A | +/- 1.8 % + 5 digits |
| DC current | 1 mA – 10 A | +/- 1.5 % + 3 digits |
| Resistance | 0.1 Ω – 40 MΩ | +/- 3.0 % + 5 digits |
| Capacitance | 1 pF – 200 µF | +/- 3.0 % + 5 digits |
| Frequency | 0.001 Hz – 9.999 MHz | +/- 1.2 % + 3 digits |
| Temperature | -20°C to 760°C | +/- 3.0 % + 3 digits |
| Diode test | 0.3 mA typical 1.5 V DC | |
| Power supply | 1 x 9 V PPS alkaline battery (supplied) | |
| Dimensions | 150 x 70 x 48 mm | |
| Weight | 255 g |
